Description
A pneumatic spider provides a reliable, automated solution for gripping and supporting tubular strings, significantly reducing manual handling risks while improving operational efficiency.
Designed for modern oilfield applications, our pneumatic spiders deliver consistent slip engagement, high load capacity, and compatibility with standard API tubular sizes.

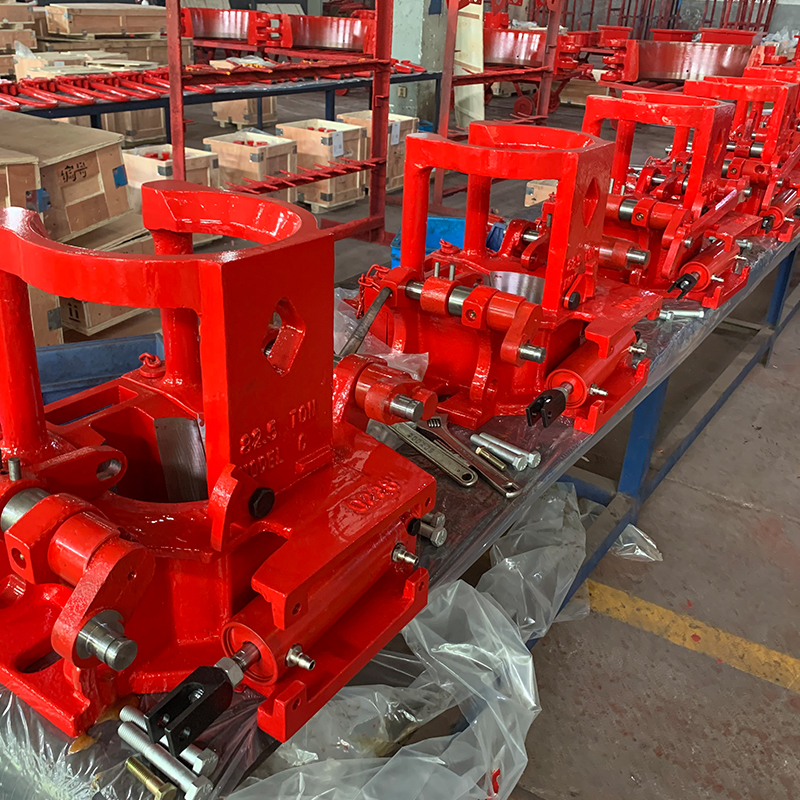

RIGRS pneumatic spiders are air-operated handling tools used to hold and support casing or tubing during running and wellsite handling operations. They help improve safety and efficiency by reducing manual effort during make-up/break-out and pipe positioning on the rig floor.
Our pneumatic spiders can be configured with replaceable slips and size ranges to match your casing/tubing program. Optional safety features and documentation can be supplied for project requirements. For correct sizing, confirm pipe type (casing/tubing), OD range, required load, and available air supply conditions.
What Is a Pneumatic Spider？
A pneumatic spider is a wellhead handling tool used to hold and suspend tubulars such as casing, tubing, and drill pipe during drilling and workover operations.
It uses compressed air to automatically control slip opening and closing, ensuring stable gripping force and minimizing manual intervention.
Pneumatic spiders are widely used in oilfield drilling rigs, workover rigs, and well servicing operations where safety and efficiency are critical.
Technical parameters and advantages of RIGRS pneumatic spider
High Load Capacity
Manufactured from high-strength alloy steel, capable of handling heavy tubular strings under demanding drilling conditions.
Enhanced Safety
Automatic slip operation reduces manual handling and minimizes accident risks on the rig floor.
Consistent Grip Force
Precision-engineered slips ensure uniform load distribution and prevent pipe slippage.
Durable Design
Heat-treated components and replaceable slips extend service life and reduce maintenance costs.
Easy Integration
Compatible with standard rotary tables and rig systems for quick installation.
Pneumatic Spider Technical Specifications
| Parameter | Value |
|---|---|
| Pipe Size Range | 2 3/8″ – 7″ |
| Load Capacity | 100 – 500 Tons |
| Working Pressure | 0.6 – 0.8 MPa |
| Slip Type | API Standard Slips |
| Operation Mode | Pneumatic |
| Installation | Rotary Table / Standalone |
RIGRS pneumatic spider Applications
Pneumatic spiders are widely used in:
Oil and gas drilling rigs
Workover and well servicing rigs
Casing running operations
Tubing installation and pulling
Onshore and offshore drilling environments
FAQ
Q: What is a pneumatic spider used for?
A: A pneumatic spider is used to hold and support casing, tubing, or drill pipe at the wellhead during drilling operations.
Q: What pipe sizes can it handle?
A: Most models cover 2 3/8″ to 7″, depending on configuration.
Q: Is it compatible with API slips?
A: Yes, pneumatic spiders are designed for standard API slip compatibility.
Q: How often should slips be replaced?
A: Slip wear depends on usage conditions. Regular inspection is recommended to maintain safety.
